● 5V,12V and 24V three-way output
● 30mm ultra-thin height
● short circuit, overvoltage, overcurrentProtection
● 100% full load burn-in test
● one year renewal, three-year warranty

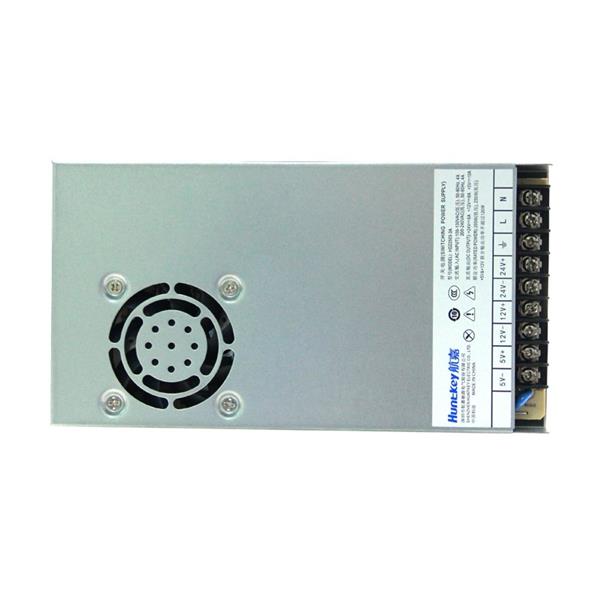

| Model | HDZ2503-3A | ||
| Output | direct voltage/current | 5V/10A，12V/8A,24V/6A | |
| voltage adjustment range | 4.5~5.5V, 11.4~12.6V, 22.8~25.2V | ||
| current adjustment range | 0.1~10A, 0.4~8A, 0.1~6A | ||
| stabilized voltage precision | ±3% | ||
| ripple | ＜80mVp-p(5V), ＜120mVp-p(12V), 240mVp-p(24V) | ||
| Input | least efficiency | 80% | |
| voltage range | 90~264VAC | ||
| surge current | Cold-boot＜45A/230VAC | ||
| Protection | overload | 316W-432W(24V)，132W-180W(5V&12V) | |
| overvoltage | 5.5V-7V(5V),13.2V-15.6V(12V),26.4V-31.2V(24V) | ||
| short circuit | When the output terminal is short-circuited, the power supply cannot be damaged, cannot catch fire, and can automatically recover after the short-circuit is eliminated | ||
| Environment | operating temperature | -20～+50℃，10～85﹪RH，no condensation（please refer to derating curve） | |
| reserving temperature | -40～+70℃，10～90﹪RH，no condensation | ||
| vibration | 10～500HZ,5G 10 min/cycle，60 min/X,Y,Z directions | ||
| Safety | safety standard | GB4943， IEC60950-1 approved | |
| electromagnetic compatibility standard | EN55022 Class A, GB9254 Class A,EN61000-4-2,3,4,5,6,8,11 , EN61000-3-2，3 | ||
| Withstand voltage | I/P-O/P：3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
| Other | dimensions | 215*115*30mm | |
| package | 16pcs/13kg | ||
