1. Complies with SSI EPS 2.1 standard server power specification
2. Adapted voltage range: 90~264VAC
3. Ball Fan, temperature control circuits
4. Overvoltage protection, overcurrent protection, short circuit protection
5. High reliability, 100% full load burn-in test
6. One year renewal, three-year warranty

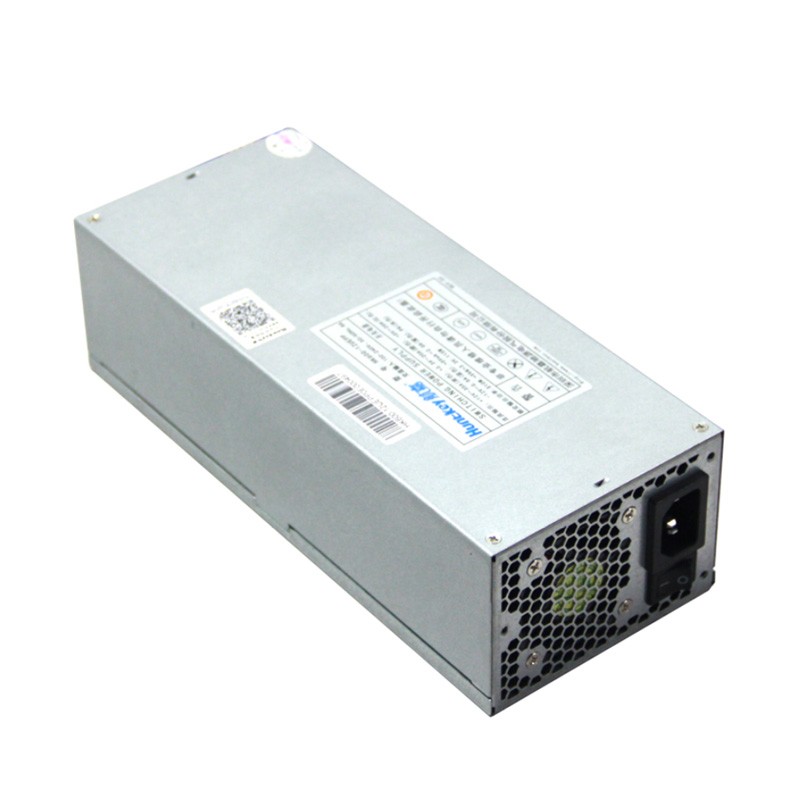

| Model HK710-12UEPP | Rated Power | 610W | |||
| Input | 90V-264VAC(47Hz-63Hz) 10A Max | ||||
| Output | Load Range | Voltage | Ripple & Noise | ||
| Min | Max | ||||
| +5V | 0.5A | 20A | ±5% | ≤50mV | |
| +12V | 0.5A | 48A | ±5% | ≤120mV | |
| +5VSB | 0A | 2A | ±5% | ≤50mV | |
| +3.3V | 0.5A | 20A | ±5% | ≤50mV | |
| -12V | 0A | 0.5A | ±10% | ≤120mV | |
| Not exceeding 150W if combines +3.3V and 5V together | |||||
| Standby Power Consumption | ≤1.5W | ||||
| Protective Function | Overvoltage protection, overpower protection, overcurrent protection, short circuit protection | ||||
| Working Environment | Air Temperature: 0~50℃, Relative Humidity: 5%~85% without condensation | ||||
| Storage Environment | Air Temperature: -40~70℃, Relative Humidity: 5%~95% | ||||
| EMI | Conform EN55032 Class B, GB9254 Class B | ||||
| Earth Leakage Current | ≤3.5mA(264VAC/50Hz) | ||||
| MTBF Value | ≥50K hours.Bellcore-TR-332(25℃) | ||||
| Cooling Method | Forced cooling and fan cooling method | ||||
| Package Method | 80PCS/Per Case | ||||
| Typical Dimensions | 240(L)×100(W)×70(H)mm | ||||
| Design Standards | Comply with SSI EPS 2.1 standard server power specification, 2U structure | ||||
| Application | Network Server, IPC, etc. | ||||
