In Compliance with Intel ATX12V 2.31
Compatible with 200~240V input voltage range
Short Circuit protection, Overpower Protection, Over voltage Protection
12cm silent fan, smart temperature control and lower noise
High stability and reliability and long service life
Meet the safety requirements of CCC
Comply with RoHS environmental standards

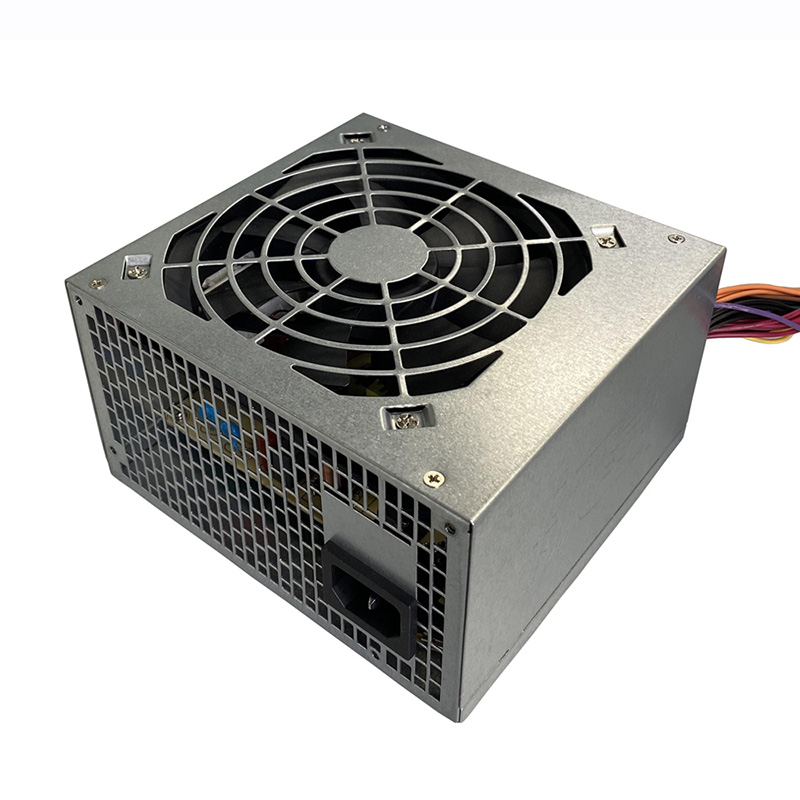

| Model | HK330-13FP | |||||
| Output | DC voltage/ Current | 12V/15A | 5V/10A | 3.3V/6A | 5Vsb/2A | -12V/0.3A |
| Voltage Adjustment Range | 11.4-12.6 | 4.75-5.25 | 3.135-3.465 | 4.75-5.25 | 10.8-13.2 | |
| Current Adjustment Range | 1-15A | 0.2-10A | 0.5-6A | 0.05-2A | 0-0.3A | |
| Voltage Accuracy | ±5% | ±5% | ±5% | ±5% | ±10% | |
| Ripple | <200mV | <50mV | <50mV | <50mV | <200mV | |
| Input | Minimum Efficiency | 68% | ||||
| Voltage Range | 200-240VAC | |||||
| Surge Current | less than the ratings of its critical components (including bulk rectifiers, fuses, and surge limiting device) under all conditions of line voltage of 200~240Vac | |||||
| Protection | Over-load | 110%-150%(Rated Load), latch | ||||
| Over-voltage | +5V<7V, +12V<15.6V, +3.3V<4.7V | |||||
| Environment | Operating Temperature/ Humidity | 0～+35℃, 5～85﹪RH, no condensation | ||||
| Storage Temperature/ Humidity | -40～+85℃, 5～95﹪RH, with condensation | |||||
| Vibration | 5 to 17 Hz 0.048 inch double amplitude displacement, 17 to 199 Hz 0.73Gs acceleration, 200 to 500 Hz 0.33Gs acceleration, Frequency to be swept at a rate of 0.067 decades/minute (4 decades/hour). Dwell at resonant frequencies for 30 minutes. | |||||
| Production Compliance | Safety standards | GB4943.1-2011, GB17625.1-2012, GB/T9254-2008 | ||||
| EMC Standards | EN55022 Class B | |||||
| Hi-POT | Input to GND: Voltage 1800VAC Time 3.0S | |||||
| Other | Dimensions | 150*140*86mm | ||||
| Package | 10PCS/10KG | |||||
