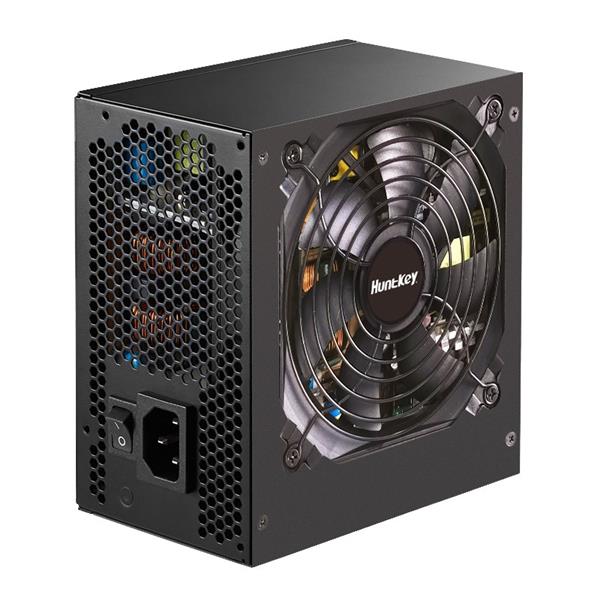

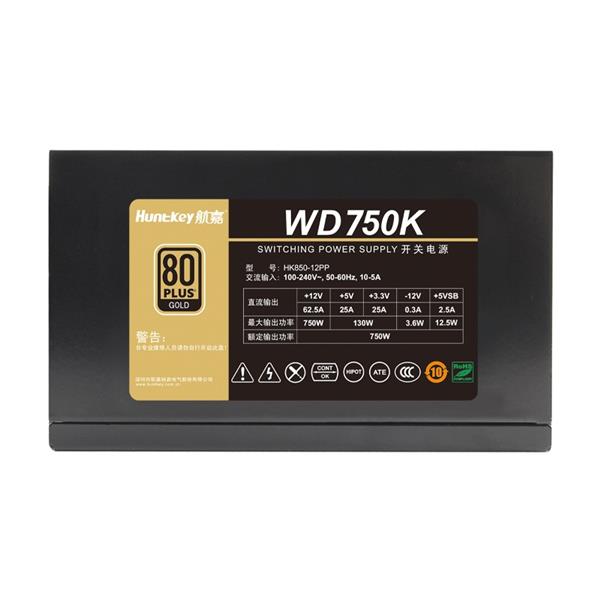

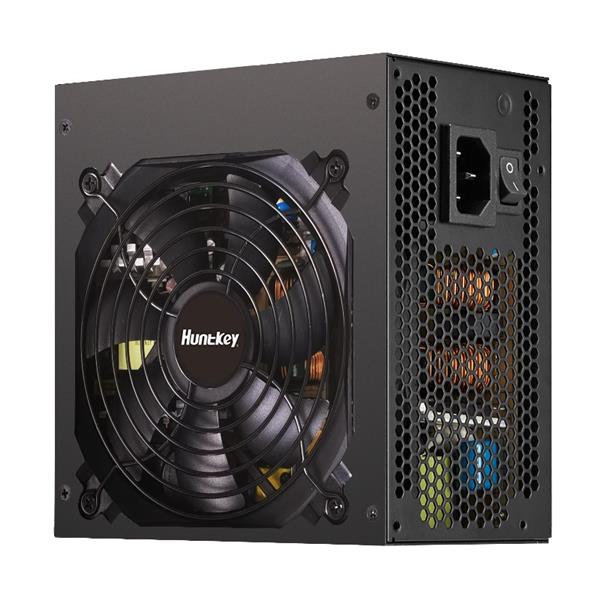

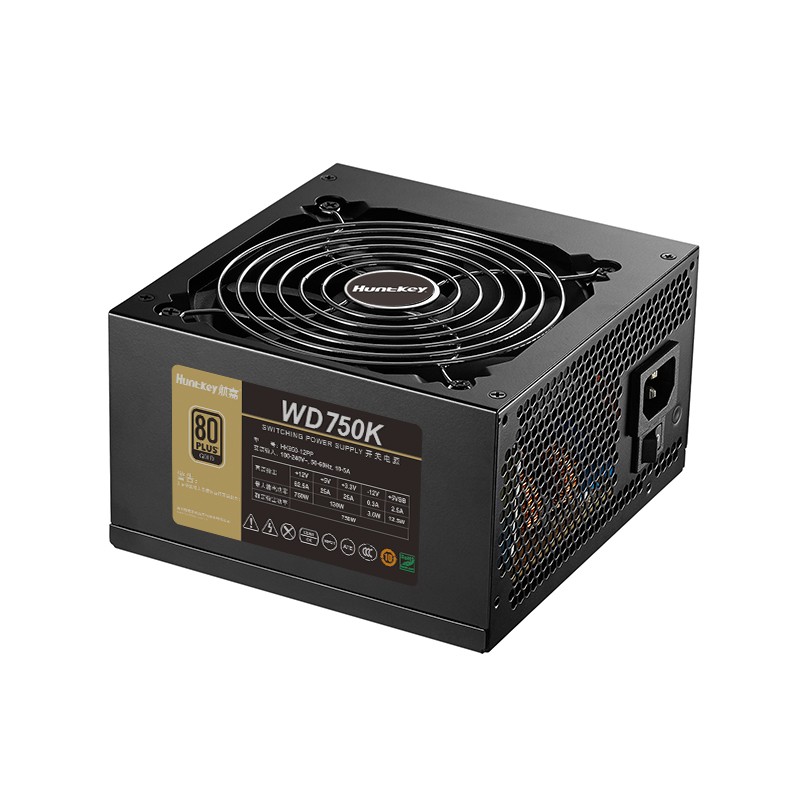

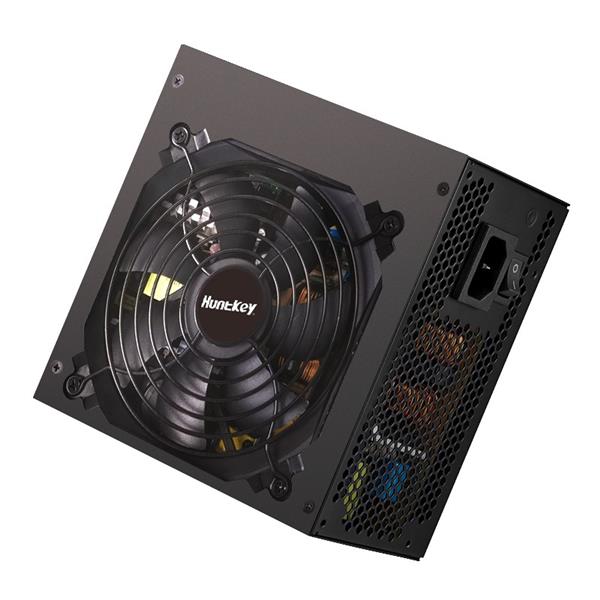

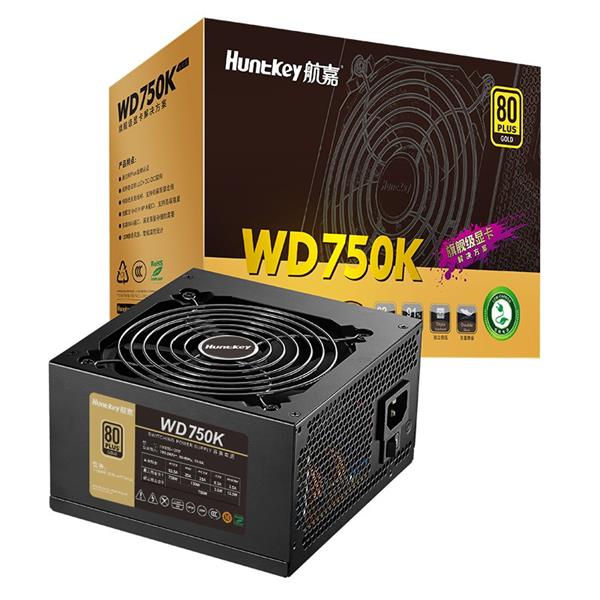

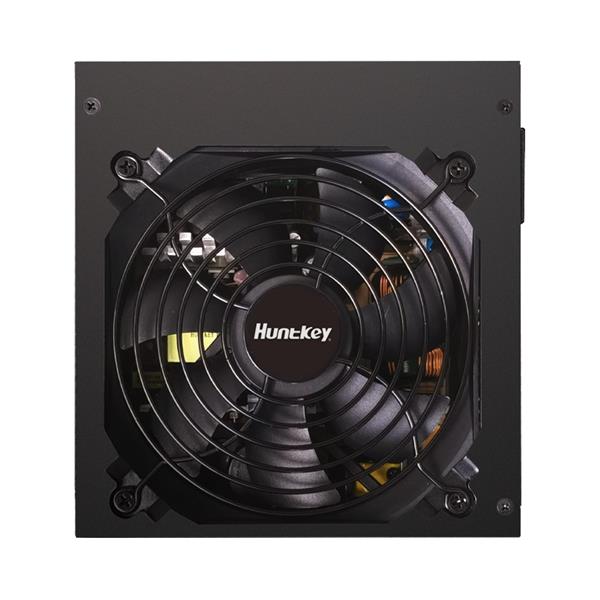

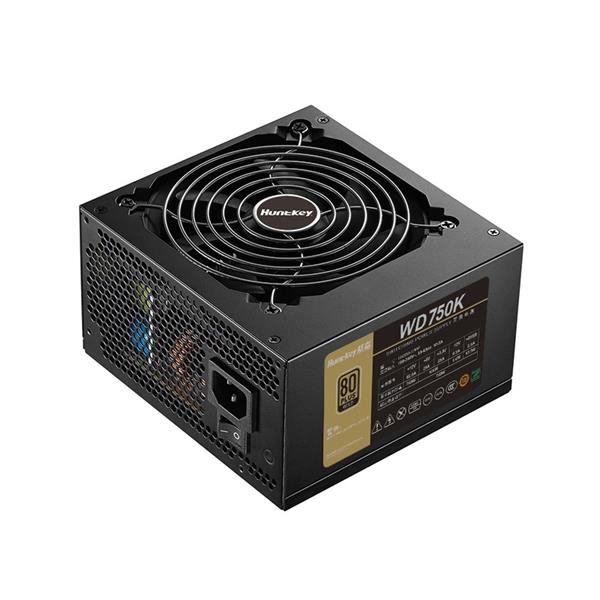

WD750K V4

1. Built to Intel ATX 3.1 standard, with native PCIe 5.1 port

2. Active PFC design, power factor over 0.98

3. Semi-digital architecture for high automation and integration

4. High-efficiency LLC design, 150-264V wide input voltage range

5. The efficiency certification meets the Gold Standard of the 80 Plus certification, with an efficiency conversion of over 92%

6. Full protection: Short circuit, over power, over voltage, over current

7. Solid-state capacitors on main output for longer life and stable current

8. 1-year replacement, 3-year warranty, nationwide service

9. Stable, reliable, long-lasting, with full aging test

10. Lead-free, CCC certified, 80PLUS certified

Energy Efficiency Class:

80PLUS Gold

Application Field:

Desktop Computer
Specifications

Model: HK850-12PP

Input Voltage: 150-264V~

Input Frequency: 50-60Hz

Output Power: 750W

Output Voltages: +12V, +5V, +3.3V, -12V, +5VSB

Output Current: +12V: 62.5A, +5V: 25A, +3.3V: 25A, -12V: 0.3A, +5VSB: 2.5A

Efficiency: 80PLUS Gold Energy Efficiency Certification

Dimensions(L*W*H): 150*140*86mm
