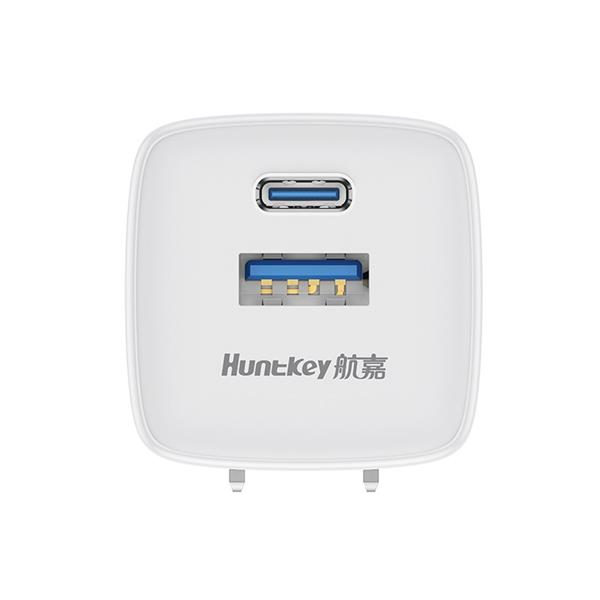

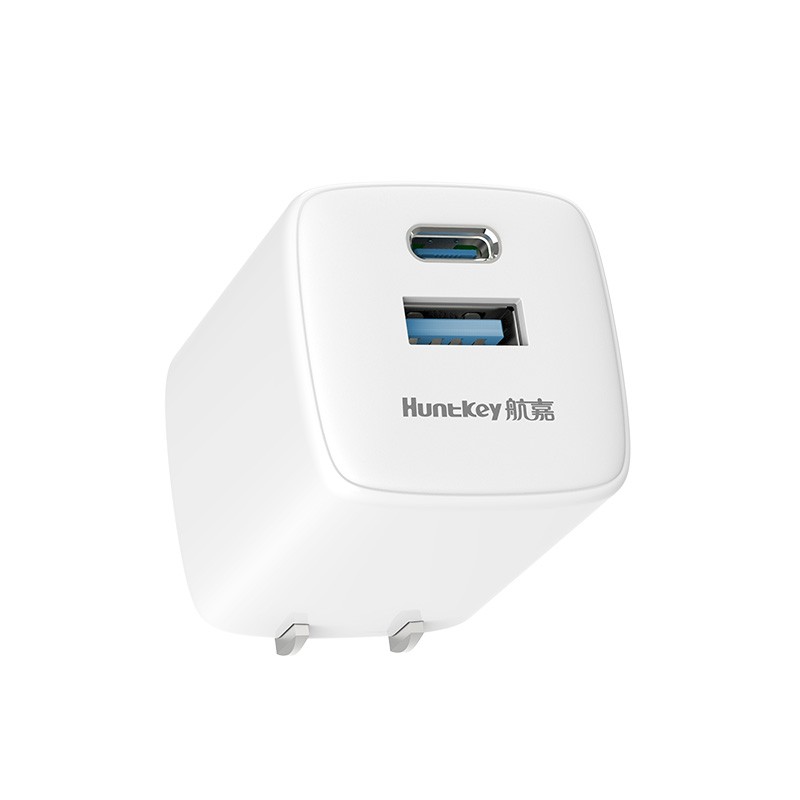

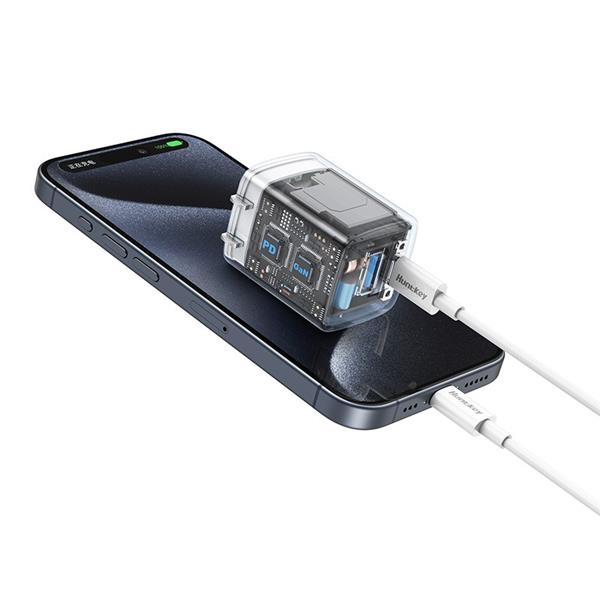

35W Folding Plug GaN charger(F35, 1C+1A)

1. Mutton-fat jade texture, sleek, rounded, and compact

2. GaN solution, compact size, high efficiency, energy saving and low carbon

3. Huntkey patented planar transformer to eliminate transformer short-circuit risks

4. Supports fast charging for device models compatible with UFCS, SCP/PPS protocols

5. Utilizes Huntkey patented planar transformer to significantly increase transformer operating efficiency, with short thermal conduction distance and large magnetic surface area for superior heat dissipation

6. Huntkey's 6 core technologies

Energy Efficiency Class:

DOE/NRCAN VI (EU)2019/1782 VI
Specifications

Model: HKC03520018-0E1

Dimension: 34*34*44

Port: 1A+1C

Input: 200-240Vac, 50/60Hz, 1.2A;

Output: USB-C:5Vdc/3A, 9Vdc/3A, 12Vdc/2.92A MAX,

15Vdc/2.33A MAX, 20Vdc/1.75A MAX;

USB-A:5Vdc/3A, 9Vdc/3A;

Dual Output: USB-A:5Vdc/2A;

USB-C:5Vdc/2A, 9Vdc/2.22A, 12Vdc/1.67A;

Input: 100-130Vac, 50/60Hz, 1.2A;

Output: USB-A:5Vdc/3A, 9Vdc/3A;

USB-C:5Vdc/3A, 9Vdc/3A, 12Vdc 2.5A, 15Vdc/2A;

20Vdc/1.5A;

Dual Output: USB-A:5Vdc/2A;

USB-C:5Vdc/2A, 9Vdc/2.22A, 12Vdc/1.67A

Protocol: PD/QC/PPS/UFCS
