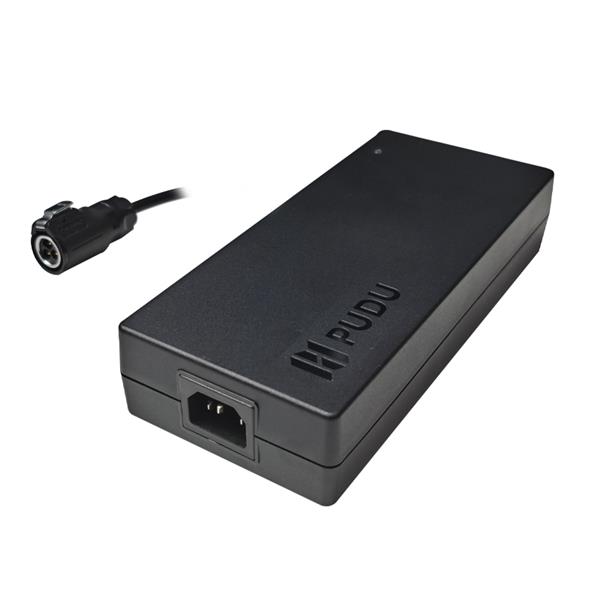

HK240A-CF

Wide voltage input range, perfect protection function, safe and reliable performance, high efficiency and energy saving, full-load conversion efficiency > 93%, precise control of charging current. This product is mainly used in the field of service robots.

Application Field:

Commercial Robots

产品规格

rated power:240W
input voltage:90-264Vac
input current:≤4A
operating frequency range:47-63Hz
output voltage:17.5-29.4Vdc
output current:8A
voltage regulation accuracy:≤±1%
ripple and noise:≤300mVp-p
efficiency:≥93%
protection:input undervoltage, input overvoltage, input current limit, output overvoltage, output overcurrent, output short circuit, over temperature protection
operating temperature:air temperature: -20-45℃
storage temperature:air temperature: -40-70℃
EMI:EN55022 Class B
IP rating:IPX3
cooling method:natural cooling
dimension:207*92.5*40.5mm
certification:CE, CB, CQC, C-tick, ETL, FCC, ICES, GS, KC, KCC, PSE, RCM, SAA SII
application field:service robot
