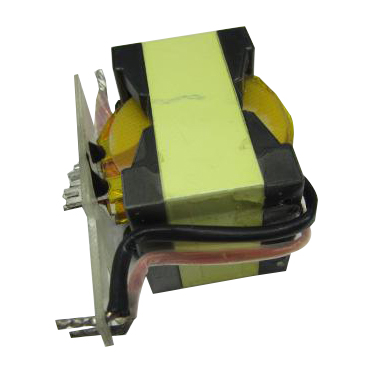

HKT-0500W

In compliance with IEC/EN60950 & GB4943.1-2011 safety standards;
Low ripples, low noise, high efficiency, EMI resistance, high impedance;
Insulation class F or above;
Voltage range: 90-264V;
Efficiency level up to 98%-99%;
Available for server & industrial power supplies;

产品规格

Operating Frequency: 100KHz

Output: 500W

Efficiency: 95%

Primary Inductance: 1.6mH

Leakage Inductance: ≤10uH

Primary DCR: ≤100mΩ

Primary Dielectric Strength: 4KV/1mA/5s

Insulation Resistance: at DC500V≥100MΩ

Testing Condition: 100KHz/0.5V

Dimensions(L*W*H): 46*23*31mm
