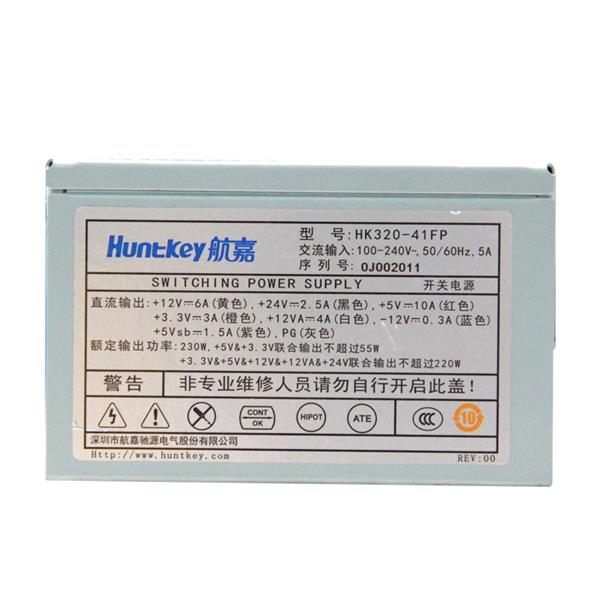

HK320-41FP SFX 220W Power Supply

● Complies with Intel SFX power supply standards
● Adapted voltage range: 90~264VAC
● Ball Fan, temperature control circuits
● Overvoltage protection, overcurrent protection, short circuit protection
● High reliability, 100% full load burn-in test
● One year renewal, three-year warranty

Application Field:

Monitors Printers

产品规格

Rated Power 220W	Input	90V-264VAC(47Hz-63Hz) 5A Max
	Output	Load Range		Voltage	Ripple & Noise
	Output	Min	Max	Voltage	Ripple & Noise
	+5V	0.3A	10A	±5%	≤50mV
	+12V	0.3A	4A	±5%	≤120mV
	+5VSB	0A	1.5A	±5%	≤50mV
	+3.3V	0.2A	3A	±5%	≤50mV
	-12V	0A	0.3A	±10%	≤120mV
	+12VA	0.2A	6A	±5%	≤120mV
	+24V	0.2A	2.5A	±5%	≤120mV
	Not exceeding 55W if combines +3.3V and 5V together
Standby Power Consumption	≤3W
Protective Function	Overvoltage protection, over power protection, short circuit protection,
Working Environment	Air Temperature:0~40℃,Relative Humidity:5%~85% without condensation
Storage Environment	Air Temperature:-40~70℃,Relative Humidity:5%~95%
EMI	Conform EN55022 Class B, GB9254 Class B
Earth Leakage Current	≤0.5mA(264VAC/50Hz)
MTBF Value	≥100K hours.MIL-HDBK-217F(25℃)
Cooling Method	Forced cooling and fan cooling method
Package Method	10PCS/Per Case
Typical Dimensions(mm)	100（L）×125（W）×63.5（H）
Design Standards	Conform Intel SFX 12V V3.1 standards
Application	three-in-one power supply, supply power to monitor, printer, and main unit at the same time
