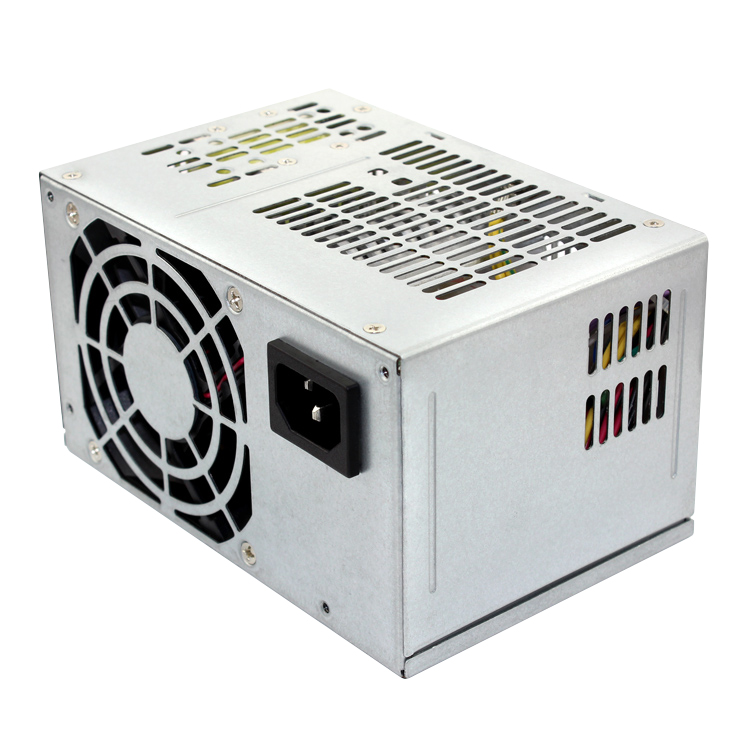

HK250-22GP

Intelligent temperature control, automatic regulation of fan speed according to the internal temperature of power supply, to effectively reduce noise;
Low ripple, low noise, high efficiency;
Overload protection, overvoltage protection and short circuit protection;
MTBF>=50,000 hours.

产品规格

Model: HK250-22GP
Dimension: 150*86*100mm (W*H*L)
Dimension of Fan: 80cm
Efficiency: > 65% Full load
AC Input Voltage: 180-264V, normal: 220V
DC Output: +3.3V+5V+12V-12V+5VSB
Max Current: 13A10A10A0.3A2A
Max Array Output: 50W
140W
150W
Output Wire Interface: 20-Pin Main*14-Pin CPU*115-Pin SATA*34-Pin IDE*1 4-Pin FDD*12-Pin *1
300mm400mm150mm+400mm+ 150mm200mm400mm580mm
